PIR Sensing + Daylight

 Philips

Philips MasterConnect APP

 Low UGR

Soft and safe lighting

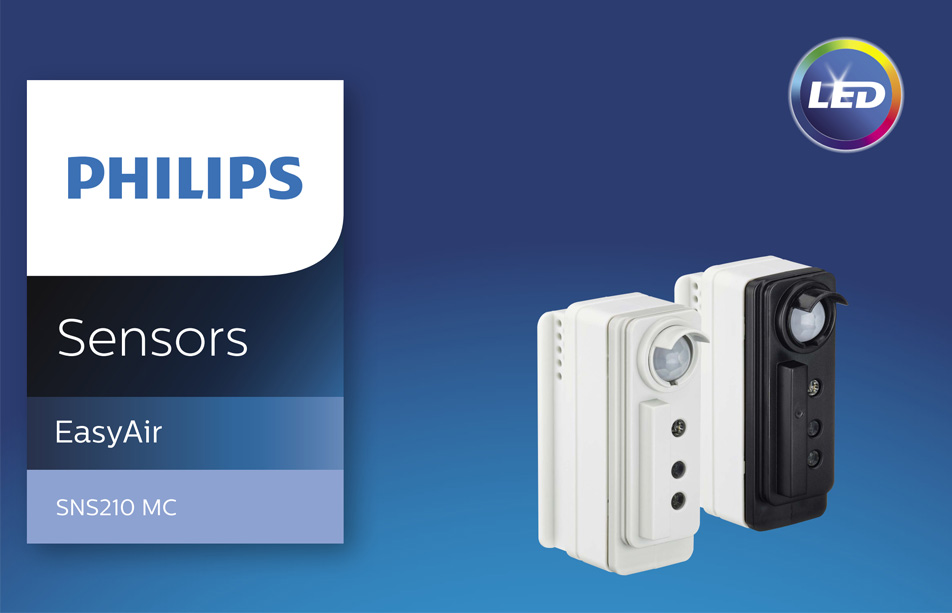

Philips SNS210 Sensor

Philips EasyAir SNS210 MC is the ideal solution for per-luminaire control of new light luminaires. It combines PIR sensing and daylight sensing in a single, it operates with the established Xitanium SR driver together. it is a cost effective and easy to design-in solution ideal for energy savings. An intuitive app makes configuration and commissioning during and after installation fast and easy using Philips MasterConnect App.

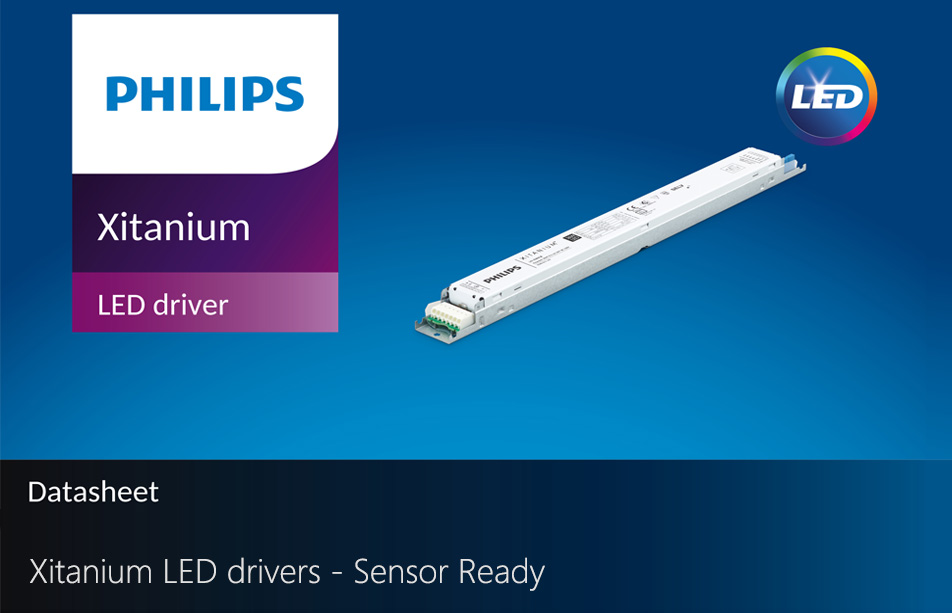

Philips SR Driver

Philips SR (Sensor Ready) drivers are ideal for use with sensors and building management systems. With its integrated DALI 2.0 power supply. it is easy to power sensors and wireless modules directly from the driver. It also features integrated energy metering for use in building management systems from the SR Certified partner program. This program with key building management and sensor vendors ensures that certified sensors and controllers work seamlessly with the Xitanium SR driver.

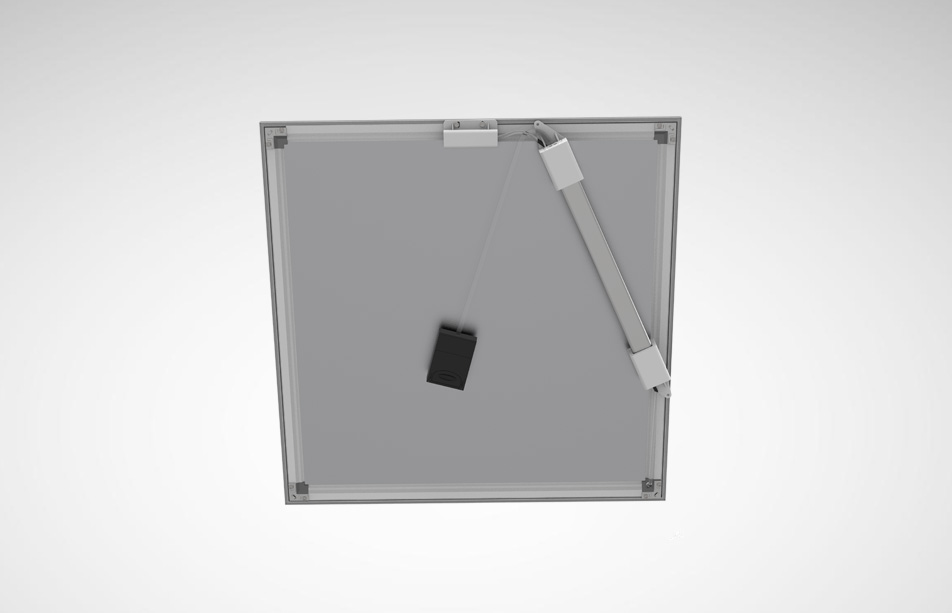

Wirebox for easy installation

We design the Wirebox for customer easier wiring and  installation, saving your time and costs, it is friendly usage. To protect well the driver, we also design the box for sensor and driver, which makes the whole led panel with high quality and elegant feature.

Mico-Prismatic Diffuser-UGR<19

To make sure the UGR<19, we have chosen the micro prismatic diffuser, it is smaller spot than the market's diffuser a lot, which create soft and uniform lighting.

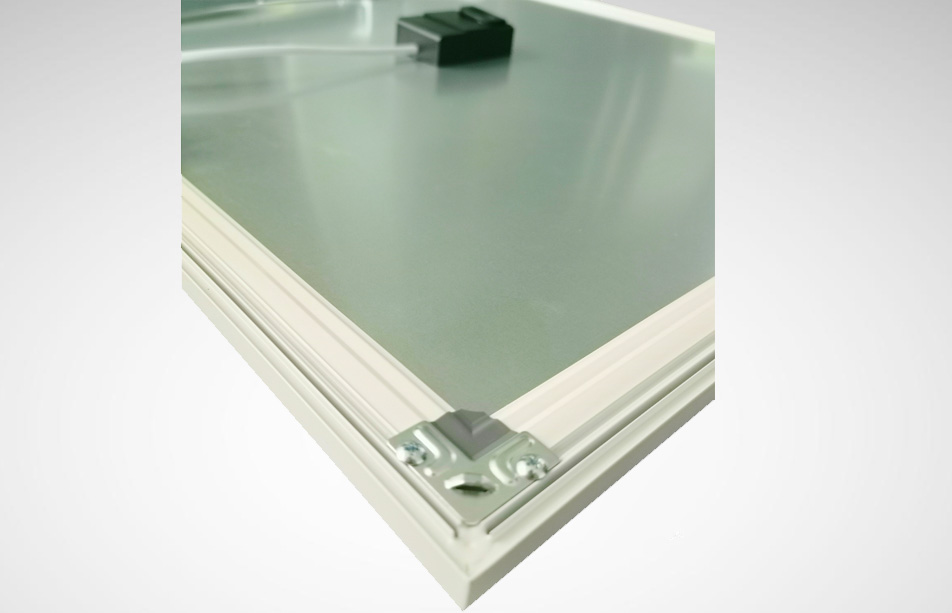

No Screw Frame

The special design plastic press batten enable fix the frame without the screw, have beautiful and clean outlook.
when you want to install the panel, you just need to press the plastic batten. it is our patent design

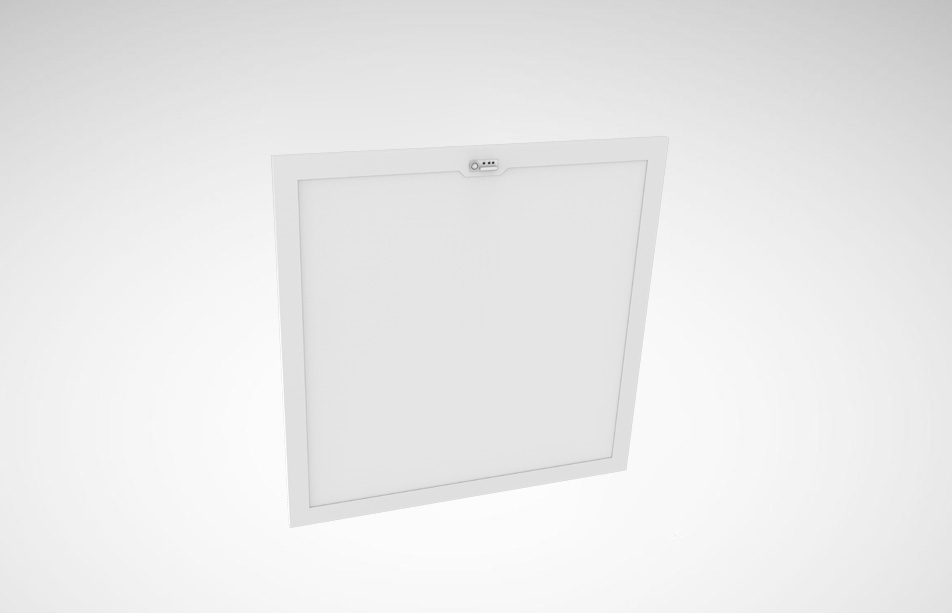

Clean&Simple Outlook

Our engineer takes about 6 month to design based on customer and market requirement, we focus on each details to make sure each parts is easy for customer to install and beautiful appearance.

TECHNISCHE FEATURES

    • Dimension
      595*595*10  |  620*620*10  |  295*1195*10
    •    Power                                                                                36W
    • UGR
      UGR<19 ( Mrico-Prismatic Diffuser )
    • SDCM
      <3
    •    CCT (K)                                                                           3000K / 4000K  / 6500K
    •   Input Voltage (V)                                                              200-240V (50-60Hz)
    • LGP
      3T PMMA
    • Sensor
      Philips EasyAir Sensor SNS210 MC
    •    Driver                                                                                Philips Xitanium SR ( with DALI-2, D4i certificate )
    •   Function                                                                            Integrated function: PIR sensing; Daylight sensing; Wireless control

  •   Warranty                                                                            5 Years
